Permanent Outdoor Lights with Individual Light & Zone Control
Quick answer: Individual-light control and zone control are not the same thing. Individual-light addressing gives each light its own ID, while zones let you group selected lights or sections so they can be controlled together.
For simple rooflines, one continuous lighting effect may be enough. For larger homes, multiple elevations, different architectural areas or more advanced scenes, independent control becomes much more useful.
Before ordering: plan the zones and the wiring separately
Sketch where you want independent effects—for example front roofline, garage, side elevation and rear elevation. These are logical lighting zones, not automatically four physical power outputs. PL2 supports up to four zones through APPECK Life and a dual-output controller; longer runs need an approved power, branch and signal plan.
Review the long-run power and branching guide, see the PL2 installation example, and check PL2 kit and compatible accessory options before selecting your installation layout.
What Is Individual-Light Control?
In an individually addressable system, each compatible light has its own digital identity. The control system can target specific lights instead of treating the entire run as one undifferentiated strip.
With APPECK Life-compatible PL2 lights, each light has an individual ID. That makes more advanced effects, service functions and branch control possible.
What Is Zone Control?
A zone is a logical group of lights that can be controlled together. For example:
- Front roofline
- Left side of the house
- Right side of the house
- Rear patio or backyard section
APPECK PL2 supports up to 4 independent zones. Each zone can use different colors, brightness levels or effects.
Why Individual IDs Matter
Individual IDs are especially useful when the physical wiring is more complex than one straight line. They allow the control system to know which lights belong to which branch or zone.
This is also why the TS2 T Signal Splitter works differently from a normal Y splitter.
TS2 vs SH13.5B Y Splitter
| Accessory | Interface | Output Behavior | Control |
|---|---|---|---|
| SH13.5B Y Splitter | Industry-standard X Connector, 3-pin | Parallel split | Both outputs receive the same signal |
| TS2 T Signal Splitter | 13.5B interface / industry-standard C Connector, 3-pin | APPECK Life branch split | Two outputs can be controlled independently |
The universal SH13.5B Y Splitter is ideal when both branches should behave the same way. TS2 is for APPECK Life-compatible lights where independent branch control is required.

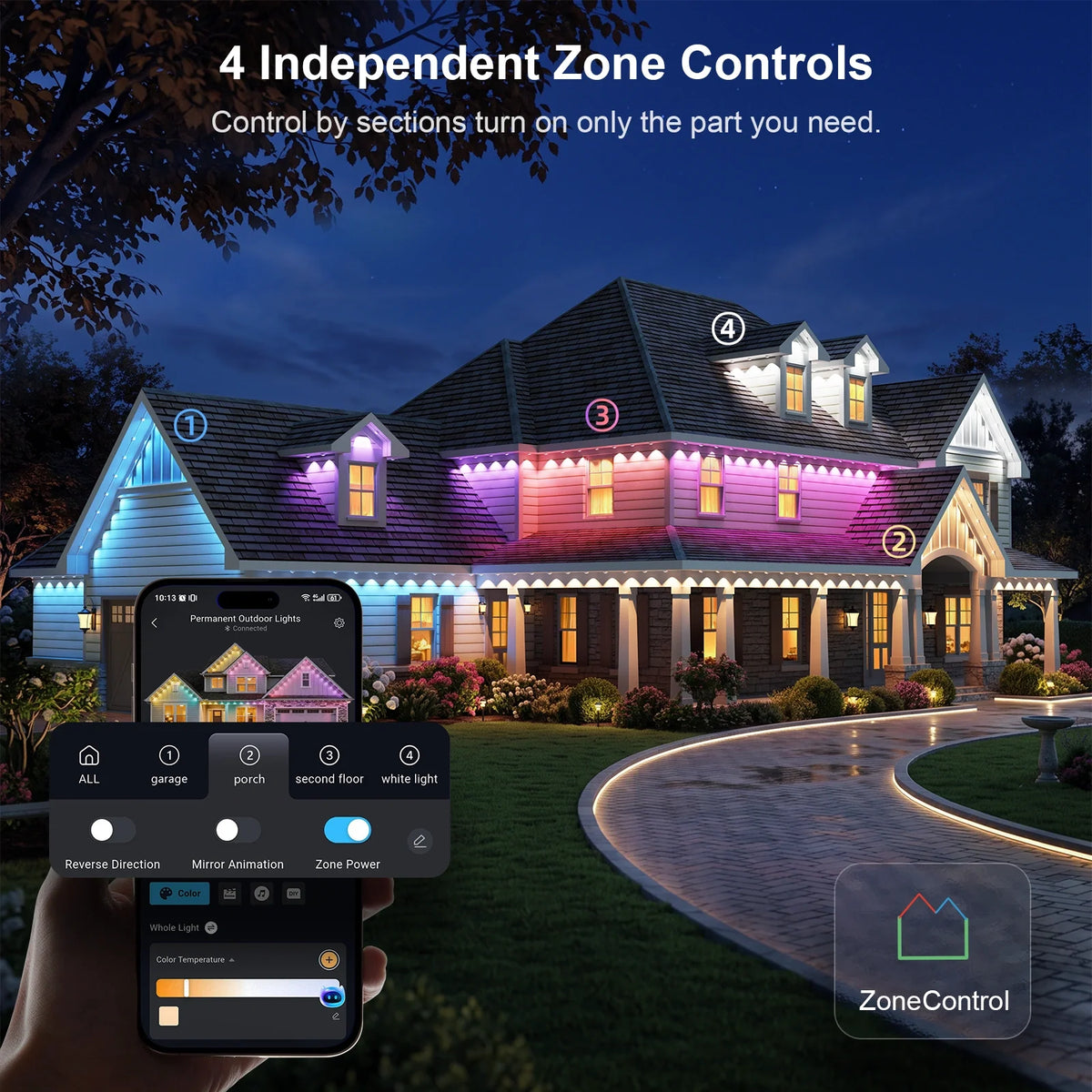

What Can You Do With 4 Zones?
A four-zone system can make one permanent installation behave like multiple lighting systems. Examples include:
- Warm white on the front roofline while a color effect runs on the backyard section.
- Different holiday colors on separate roof elevations.
- Lower brightness on bedroom-side sections while keeping the entrance brighter.
- Different scenes for the front, side and rear without installing separate controllers for every area.
APPECK Life + PL2
APPECK PL2 RGBCW Permanent Outdoor Lights are designed around the APPECK Life platform. The system combines:
Real-World PL2 Install & Review
See APPECK PL2 Installed on a Real Home
Watch Jeff Springer measure, install and test PL2, including extension cables, TS2 branching, long-run power, APPECK Life setup, zones, tunable white and full-color effects. Sponsored by APPECK; testing and opinions are the creator’s own.
- Individual-light addressing
- Up to 4 zones
- AI-created lighting effects
- Preview, edit and save functions
- 2.4GHz Wi-Fi
- Bluetooth direct connection
- Alexa and Google Assistant support
- Dual controller outputs
When Is Individual Control Worth It?
Individual-light and zone control are most valuable when your home has multiple roof sections, when you want different effects in different areas, or when you expect the system to grow over time.
If you simply want one long RGBW run with the same effect everywhere, a simpler system may be enough. If you want the lighting to act more like a flexible architectural system, PL2 is the stronger fit.
How to Plan Zones Before Installation
- Sketch the roofline and mark the areas you want to control separately.
- Decide whether each physical branch should carry the same signal or be independently controllable.
- Use the SH13.5B Y Splitter for same-signal parallel branches.
- Use TS2 only with APPECK Life-compatible lights when independent output control is required.
- Plan controller outputs, power injection and signal amplification before permanently mounting the lights.
Frequently Asked Questions
Does every PL2 light have its own ID?
Yes. APPECK Life-compatible PL2 lights use individual IDs, which support individual addressing and independent zone/branch functions.
Is a zone the same as a physical branch?
No. A branch describes how the system is physically wired. A zone is a control grouping inside the APPECK Life system.
Can a normal Y splitter create independent branches?
No. The SH13.5B Y Splitter sends the same signal to both parallel outputs. Use TS2 with APPECK Life-compatible lights when the two outputs need independent control.
