400ft Permanent Outdoor Lights: How to Plan Power, Signal & Branches
Quick answer: A 400 ft permanent outdoor-lighting project should be planned as a system—not as one long string. Controller capacity, branch layout, power distribution, signal integrity, extension gaps and the supported number of lights all matter.
Large homes often need 300–400 ft of illuminated roofline, and some projects need even more. The right design starts by separating lighted length from non-lighted extension distance, then choosing a product architecture that supports the required branches, power and signal path.
400ft purchase checklist: three measurements first
- Illuminated length: add the eaves, peaks and walls that actually need lights. Do not count non-lighted cable gaps as illuminated footage.
- Unlit extension gaps: measure each jump between roof sections and mark where extra extension cables may be needed.
- Output, power and signal plan: confirm the chosen controller's supported lights per output, approved branch components and whether additional power or signal amplification is needed.
Use the 100ft vs 200ft vs 400ft sizing guide to choose a starting kit. APPECK PL2 offers 400ft configurations; its up-to-800ft expansion requires compatible additional power and signal components, not just one standard kit. See the PL2 buying guide before ordering accessories.
Step 1: Measure the Actual Illuminated Roofline
Measure the sections where lights will actually be installed rather than estimating from the home’s floor area. Mark front eaves, gables, sides and rear sections separately.
Also mark every gap where you want cable but no light—for example between roof sections, around dormers or between separate structures.
Step 2: Choose a System Designed for Long Runs
Not every permanent-light system handles 400 ft the same way.
| APPECK System | Typical Kit Lengths | Long-Run Approach |
|---|---|---|
| C5111 | 200 / 300 / 400 ft | Parallel branch architecture using the SH13.5B Y Splitter |
| PL2 | 100 / 200 / 300 / 400 ft | Dual outputs, modular sections, APPECK Life zoning and supported long-run expansion |
Step 3: Understand Branching
The SH13.5B Y Splitter — industry-standard X Connector, 3-pin is a universal parallel splitter. Both output branches receive the same control signal, so the two branches cannot be controlled independently.
The TS2 T Signal Splitter — 13.5B interface / industry-standard C Connector, 3-pin is different. It is designed for APPECK Life-compatible lights. Because every light has an individual ID, the two TS2 output branches can be controlled independently.
Step 4: Plan Power Injection Separately from Signal
Long layouts can need additional power even when the control signal still reaches the next section. APPECK power-injection packs are shared across compatible systems when the voltage matches.
Do not assume a low-voltage drop problem means you need another controller. If the controller still has capacity, power injection can often be the correct way to support a longer layout.
Step 5: Plan Signal Integrity
Long cable paths, multiple branches and larger light counts can require signal support. The SA2 signal amplifier is used to strengthen supported long-layout signal paths.
Power injection and signal amplification solve different problems: power injection supports voltage/current delivery, while the signal amplifier supports data integrity.
Step 6: Use Extension Cable for Non-Lighted Gaps
Extension cable lets you cross roof areas where you do not want lights. APPECK extension cords and wire connection accessories are shared across the Permanent Outdoor Lights lineup.
Keep extension-cable routing separate from the product’s supported illuminated-light length and system-capacity limits.
Why PL2 Is Strong for 300–400 ft Projects

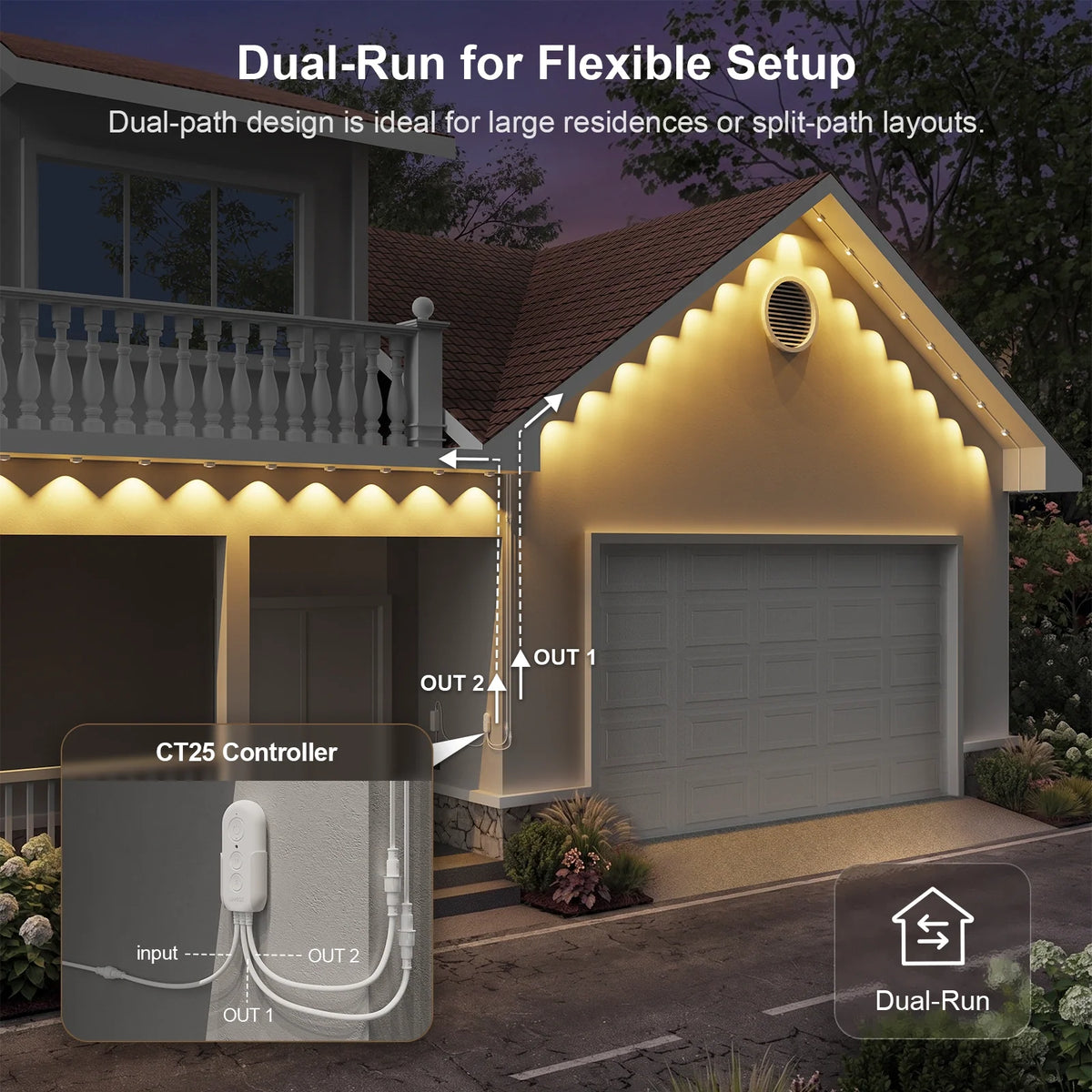

APPECK PL2 RGBCW Permanent Outdoor Lights are available in 300 ft and 400 ft configurations and use a dual-output architecture designed for more flexible installation.
Real-World PL2 Install & Review
See APPECK PL2 Installed on a Real Home
Watch Jeff Springer measure, install and test PL2, including extension cables, TS2 branching, long-run power, APPECK Life setup, zones, tunable white and full-color effects. Sponsored by APPECK; testing and opinions are the creator’s own.
PL2 combines:
- 100 / 200 / 300 / 400 ft kit options
- Dual outputs
- Up to 4 independent zones
- APPECK Life individual-light addressing
- 1-, 6- and 12-light modular sections
- Universal extension cable and SH13.5B Y Splitter support
- TS2 independent APPECK Life branches
- SA2 signal amplification
- Supported power injection
- Expansion up to 800 ft / 576 LEDs with the supported architecture
400 ft Installation Checklist
- Measure each illuminated roofline section.
- Mark non-lighted gaps separately.
- Choose the correct 300 ft or 400 ft kit and Track option.
- Decide whether branches need the same signal or independent control.
- Plan power injection points before mounting.
- Plan SA2 signal amplification where required.
- Confirm controller outputs and supported light count.
- Test each branch before permanently fixing the track or clips.
Frequently Asked Questions
Can one permanent-light system cover 400 ft?
Yes, when the product architecture is designed for that length. C5111 and PL2 both offer 400 ft configurations, but their branching and control architectures are different.
Can PL2 go beyond 400 ft?
Yes. With supported additional power supplies, power injection, TS2 or Y branching as appropriate, and SA2 signal amplification, PL2 can expand up to 800 ft / 576 LEDs.
